World Systems, Collision Pathfinding & NPC Dialogue

Deep dive into physical obstacle colliders, navigation pathfinding around buildings, multi-branch dialogue trees, and dynamic Fog of War shaders.

Table of contents

  1. 1. Physical Buildings & Collision Geometry
    1. Building Structures in Oakhaven Village (2560×1440 Pre-Rendered Plate):
  2. 2. Obstacle-Avoidance Pathfinding (Pathfinder.gd)
    1. Safe Village Corridor Waypoints
  3. 3. 18-NPC Roster & Branching Dialogue Trees
    1. Dynamic NPC Facing Behavior
  4. 4. Dynamic Fog of War Shader (fog_of_war.gdshader)
    1. Shader Characteristics:
  5. 5. Interactive Pickups & Doorway Portals

1. Physical Buildings & Collision Geometry

In earlier 2D RPG implementations, buildings were often simple background drawings where players could walk through walls or clip into rooftops. In Tactical cRPG Realm, every structure is a genuine physical entity with collision boundaries on Layer 1:

Physical House and Wall Navigation

Figure 1: Party navigating through safe street corridors between Farmer Giles' Cottage, Miller Hob's post, and stone ramparts with waypoint line telemetry.

Building Structures in Oakhaven Village (2560×1440 Pre-Rendered Plate):

  • The Rusty Dragon Inn (HouseInn, door-id-inn): 360×180 two-story Tudor timber tavern footprint at Vector2(410, 640).
  • Oakhaven Town Hall & Guildhouse (HouseTownHall, door-id-townhall): 320×260 stone clock-tower civic hall at Vector2(1090, 330).
  • Brand's Forge & Armory (HouseBlacksmith, door-id-blacksmith): 220×140 stone forge with outdoor glowing furnace & anvil at Vector2(1520, 460).
  • Maybelle's Remedies & Garden (HouseApothecary, door-id-apothecary): 280×140 thatched apothecary with flower garden fence at Vector2(1810, 600).
  • Farmer Giles' Thatched Cottage (HouseCottage, door-id-farmhouse): 240×190 rustic farm cottage at Vector2(140, 1120).
  • Elder Martha's Cottage (HouseElderCottage, door-id-elder): 280×180 thatched cottage at Vector2(670, 1340).
  • Royal Guard Barracks (HouseBarracks, door-id-barracks): 340×220 garrison quarters at Vector2(1620, 1250).
  • Ranger Kaelen's Lodge (HouseRangerLodge, door-id-ranger): 320×200 woodland outpost lodge at Vector2(1990, 990).
  • Sister Althea's Shrine of Light (HouseShrine, door-id-shrine): 240×200 stone chapel with stained-glass rose window at Vector2(2310, 340).
  • Miller Hob's Windmill & Granary (HouseMill, door-id-mill): Hilltop windmill and granary silo at Vector2(2330, 130).
  • Royal Garrison Gate & Northern Ramparts (GarrisonGate, door-id-1): Massive stone gatehouse with iron portcullis at Vector2(1280, 220).
  • Central Fountain & Market Plaza: Stone fountain pool (radius 50.0 at Vector2(1150, 660)) flanked by 5 active market stalls.

All structures use StaticBody2D with collision_layer = 1 and collision_mask = 1, physically blocking character movement vectors.

2. Obstacle-Avoidance Pathfinding (Pathfinder.gd)

To prevent party members from getting stuck against solid walls, the navigation system employs a dual-tier pathfinding algorithm:

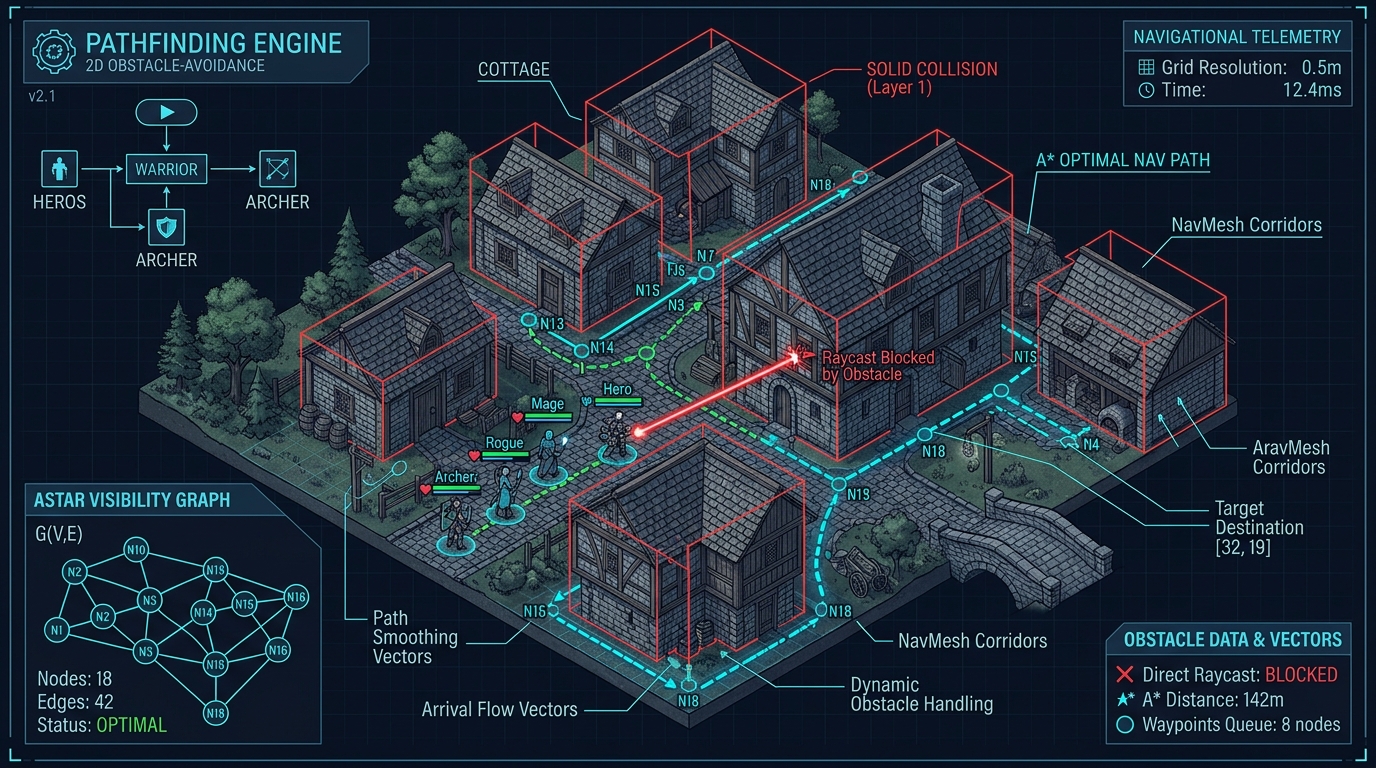

2D Obstacle-Avoidance Pathfinding Architecture & A* Visibility Graph

Figure 2: Dual-tier obstacle-avoidance pathfinding: Layer 1 physics raycast detects solid building collision footprints and routes heroes through safe A* corridor waypoints.

Safe Village Corridor Waypoints

VillageSquare.gd:get_nav_points() provides guaranteed traversable waypoints through the town:

  • Southern Plaza Trail: (240, 1210) through (1280, 1180) connecting cottages and southern gate
  • Central Thoroughfare & Fountain Ring: (950, 660) to (1280, 850) circling the fountain and market stalls
  • West Tavern / Inn Approach: (470, 750) to (750, 750)
  • Apothecary & Eastern Road: (1450, 820) through (2420, 780) to Whispering Forest
  • Citadel Ramparts & Garrison Gate: (1280, 480) to (1280, 240)

When the player or AI issues a movement order across town, Pathfinder.gd calculates intermediate waypoints avoiding all house bounding boxes.

3. 18-NPC Roster & Branching Dialogue Trees

The realm features 18 fully scripted NPCs with branching dialogue trees defined in data/v1/dialogue.json:

NPC ID Name Role / Location Key Interaction & Lore
npc-id-1 Blacksmith Brand Village Forge Provides the side-gate key unlocking the citadel keep.
npc-id-innkeeper Barkeep Corwin The Rusty Dragon Shares rumors of corrupted hounds and shadows.
npc-id-guildmaster Guildmaster Aldous Town Hall Represents the merchant guild; updates quest objectives.
npc-id-herbalist Maybelle Apothecary Sells healing draughts and antidote poultices.
npc-id-guard Captain Kenneth Village Ramparts Warns travelers of closed northern passes.
npc-id-farmer Farmer Giles South Farm Reports strange howling in the night.
npc-id-priestess Sister Althea Shrine of Light Offers blessings and divine lore.
npc-id-peddler Goblin Sneak Whispering Forest Sells rare contraband and lockpicks in the woods.
npc-id-fallen Torin Forest Ruins Dying adventurer warning of the crypt’s guardian.
npc-id-hermit Hermit Odo Forest Clearing Ancient scholar possessing knowledge of Malakor’s curse.
npc-id-crypt-ghost Sir Justin Ancient Catacombs Ghost of the royal knight guarding the sarcophagus key.
In-Log Branching Dialogue

Figure 3: In-log dialogue tree with numbered responses, journal quest updates, and auto-facing.

Dynamic NPC Facing Behavior

When the hero approaches and clicks an NPC, NPCCharacter.set_conversing() dynamically flips the NPC’s sprite (sprite.flip_h = hero.global_position.x > npc.global_position.x) so characters face each other naturally during dialogue.

4. Dynamic Fog of War Shader (fog_of_war.gdshader)

Unexplored areas of the map are shrouded in darkness using a hardware-accelerated canvas item shader:

Fog of War Vision Reveal

Figure 4: Fog of War revealing terrain around the party hero and companion light sources.

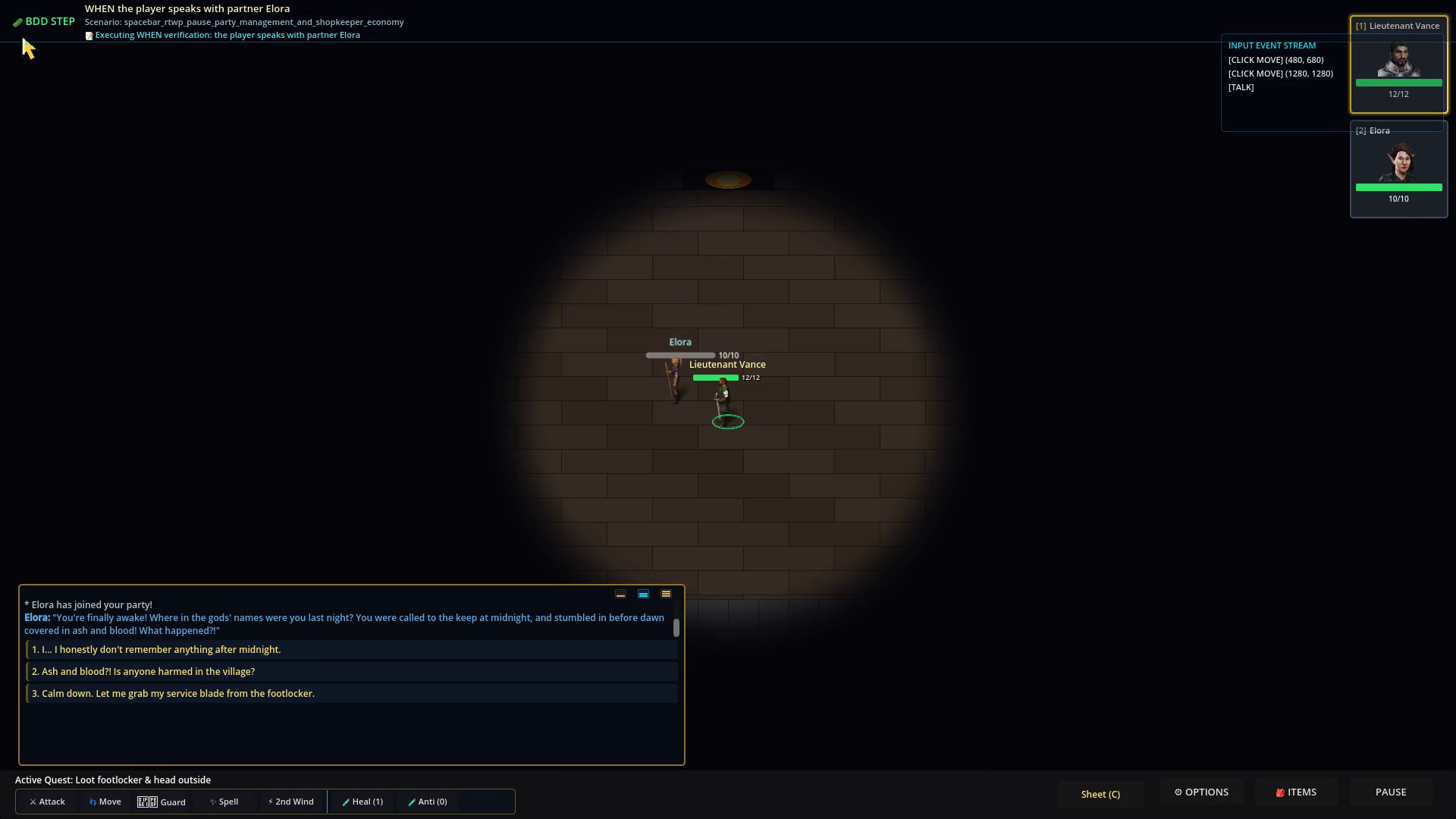

Shopkeeper Trading Economy

Figure 5: Shopkeeper economy window with dual party/merchant inventory grids and gold balances.

Shader Characteristics:

  • Radial Sight Mask: Each registered party member and light source punches a smooth circular gradient through the darkness texture.
  • Ambient Darkness: Unrevealed areas remain darkened (rgba(0.02, 0.03, 0.05, 0.94)), hiding ambush monsters and loot chests until approached.
  • Persistent Exploration: Revealed terrain remains dimly visible on the minimap while hiding dynamic monster movements outside line-of-sight.

5. Interactive Pickups & Doorway Portals

  • GroundItem.gd: Ground items (item-id-1, item-id-scroll, item-id-iron-sword) feature pulsing hover circles and floating titles. Approaching within range adds the item to the party inventory, updates the Activity Log, and emits arrival particle effects.
  • DoorPortal.gd: Doorways (door-id-1, door-id-forest, door-id-inn) verify lock conditions against party inventory (garrison-key). When unlocked, they transition the scene and position heroes at designated entry coordinates (target_spawn).

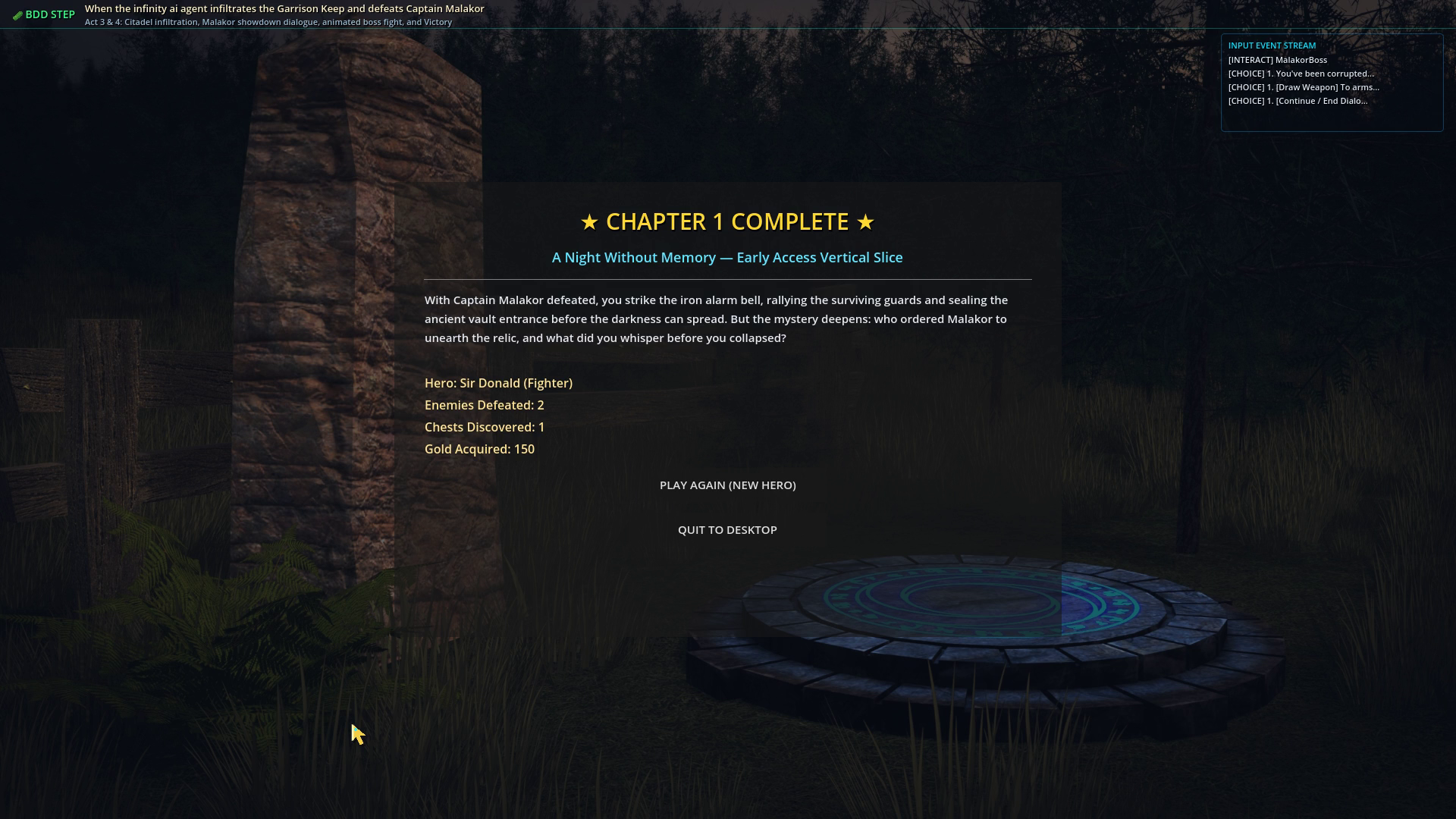

Campaign Victory Climax

Figure 6: The climax of the epic campaign: Captain Malakor is vanquished, the crypt is sealed, and the realm is saved.
