1. Executive Architecture & Engine Topology

The Tactical cRPG & Infinity AI Engine (crpg-realm) is RobOS's reference implementation of a complete, production-grade video game built from scratch by AI agents adhering to Knowledge Graph-First standards. Inspired by legendary Infinity Engine classics (Baldur's Gate, Icewind Dale, Planescape: Torment), the project combines authentic Real-Time with Pause (RTwP) combat, a 6.0-second combat round timer, multi-branch dialogue, and physical building collision geometry with cutting-edge autonomous AI verification.

graph TD subgraph GodotRuntime["Godot 4.3 Engine Runtime"] Tree["SceneTree (VillageSquare / Homestead)"] Camera["Camera2D (1920x1080 Viewport Clamped to 2560x1440)"] Physics["StaticBody2D Colliders (Layer 1 Physical Buildings)"] Path["Pathfinder.gd (RayCast2D Line-of-Sight & A* Corridors)"] Fog["FogOfWar.gdshader (Dynamic Vision Reveal)"] Combat["CombatEngine.gd (D&D 5e SRD 6.0s Round Timer)"] REST["GameControlServer.gd (HTTP :18090 Telemetry & Action Injection)"] end subgraph DataStore["Knowledge Graph-First Data Pipeline"] KGraph[".robos/kgraphs/crpg/package.jsonld"] Schemas["schemas/v1/*.schema.json"] Compiled["DataStoreV1.gd (Statically-Typed Singletons)"] end subgraph Verification["Autonomous Infinity AI Agent"] Agent["InfinityAIAgent (qa_player/infinity_ai_agent.py)"] Radar["Threat Radar (140px Trigger / 200px Pack Alerting)"] Xvfb["Xvfb Display :99 & FFmpeg 1080p MP4 Video Proof"] end KGraph --> Schemas --> Compiled --> Tree Tree --> Camera Tree --> Physics Tree --> Path Tree --> Fog Tree --> Combat Tree --> REST REST <--> Agent Agent --> Radar REST --> Xvfb

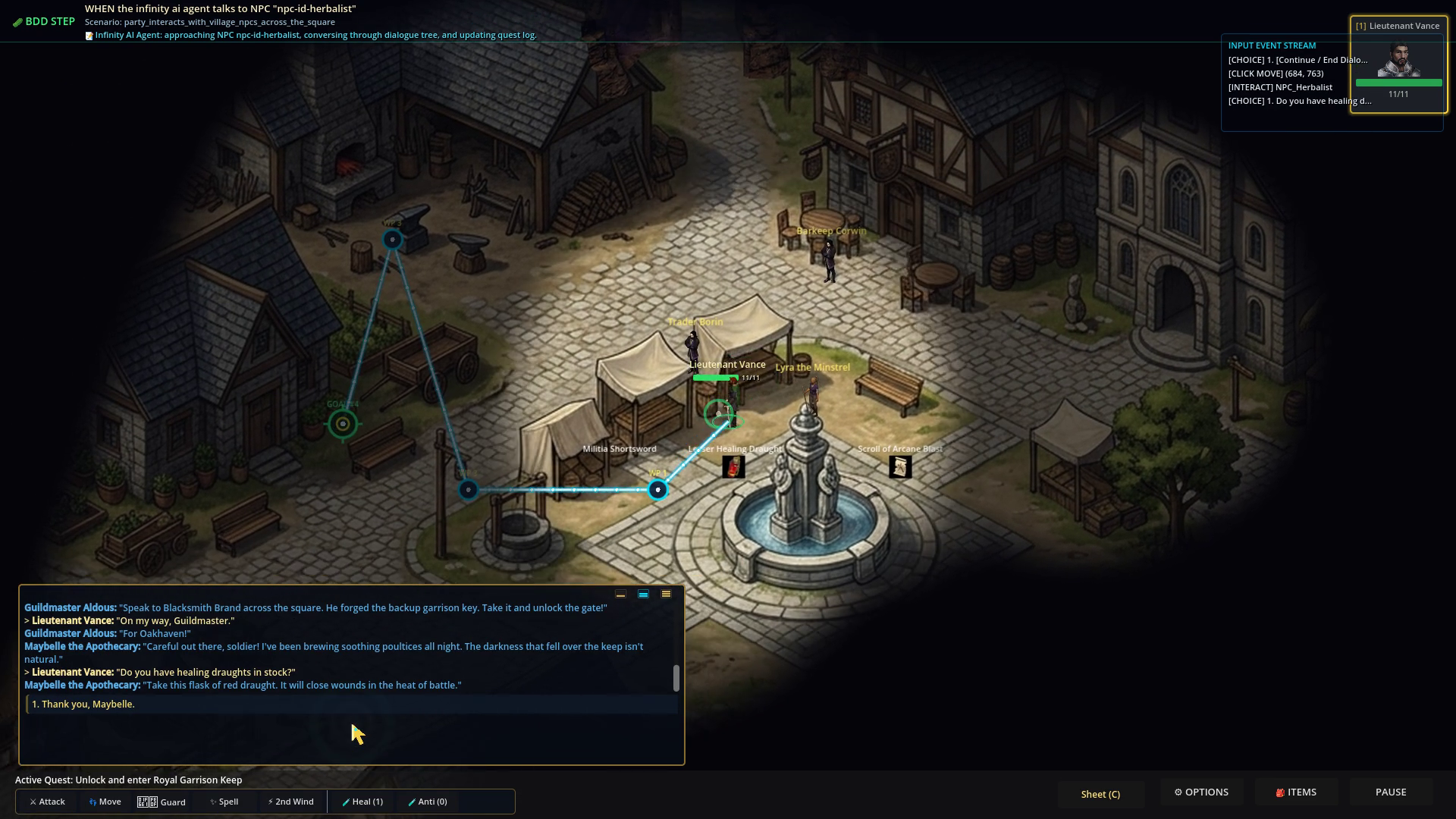

Oakhaven Village Square in Tactical cRPG

Figure 1: Oakhaven Village Square (2560x1440 pre-rendered plate) featuring 11 physical buildings, stone ramparts, animated NPCs, and the Infinity Engine HUD.

2. Module 1: D&D 5e Ruleset & Mathematical Action Economy

At the heart of the combat simulation is a strict mathematical implementation of the D&D 5th Edition System Reference Document (SRD 5.1) ruleset.

flowchart TD StartRound["Combat Round Start (6.0s Timer)"] --> InitRoll["Roll Initiative: 1d20 + DEX Mod"] InitRoll --> ActionBudget["Budget: 1 Action, 1 Bonus Action, 1 Reaction, 30ft Movement"] ActionBudget --> AttackChoice{"Action: Attack, Spell, or Dash?"} AttackChoice -- "Melee / Ranged Attack" --> CheckAdv{"Advantage or Disadvantage?"} CheckAdv -- "Advantage" --> RollAdv["Roll 2d20: Keep Highest"] CheckAdv -- "Disadvantage" --> RollDis["Roll 2d20: Keep Lowest"] CheckAdv -- "Normal" --> RollNorm["Roll 1d20"] RollAdv --> CalcToHit["To-Hit = Roll + Prof + STR/DEX"] RollDis --> CalcToHit RollNorm --> CalcToHit CalcToHit --> ACCompare{"To-Hit >= Target AC?"} ACCompare -- "Nat 20 Critical Hit" --> CritDmg["Double All Damage Dice + Modifiers"] ACCompare -- "Hit" --> RegDmg["Roll Weapon Damage + Modifier"] ACCompare -- "Miss / Nat 1" --> Miss["0 Damage (Combat Log Entry)"] CritDmg --> ApplyHP["Deduct Target HP & Check Death Saves"] RegDmg --> ApplyHP Miss --> RoundEnd["Tick 6.0s Round Timer"] ApplyHP --> RoundEnd

Mathematical Combat Formulas

1. Ability Modifier Calculation:

\text{Modifier} = \left\lfloor \frac{\text{Ability Score} - 10}{2} \right\rfloor

(e.g., Strength 16 $\rightarrow +3$ , Dexterity 14 $\rightarrow +2$ , Constitution 8 $\rightarrow -1$ )

2. Armor Class (AC) Equations:

\text{Unarmored AC} = 10 + \text{DEX Modifier}

\text{Light Armor AC} = \text{Base Armor AC} + \text{DEX Modifier}

\text{Medium Armor AC} = \text{Base Armor AC} + \min(\text{DEX Modifier}, 2)

\text{Heavy Armor AC} = \text{Base Armor AC}

\text{Total AC} = \text{Armor AC} + \text{Shield (+2)} + \text{Magic/Cover Bonuses}

3. d20 Attack Roll Resolution:

\text{Attack Roll} = 1d20 + \text{Proficiency Bonus} + \text{STR/DEX Modifier} \ge \text{Target AC}

- Natural 20 (Critical Hit): Always hits regardless of AC; doubles all damage dice rolled before adding flat ability modifiers.
- Natural 1 (Critical Miss): Always misses regardless of modifiers.

4. Advantage & Disadvantage Probability Shift:
When rolling with Advantage ( $\max(d20_1, d20_2)$ ), the expected roll increases from $10.50$ to $13.825$ (+3.325 equivalent bonus). When rolling with Disadvantage ( $\min(d20_1, d20_2)$ ), the expected roll drops to $7.175$ (-3.325 penalty).

5. Spell Save DC & Spell Attack Bonus:

\text{Spell Attack Modifier} = \text{Proficiency Bonus} + \text{Spellcasting Ability Modifier}

\text{Spell Save DC} = 8 + \text{Proficiency Bonus} + \text{Spellcasting Ability Modifier}

Figure 2: Complete D&D 5e Character Sheet tracking ability scores, modifiers, AC, saving throws, and status conditions.

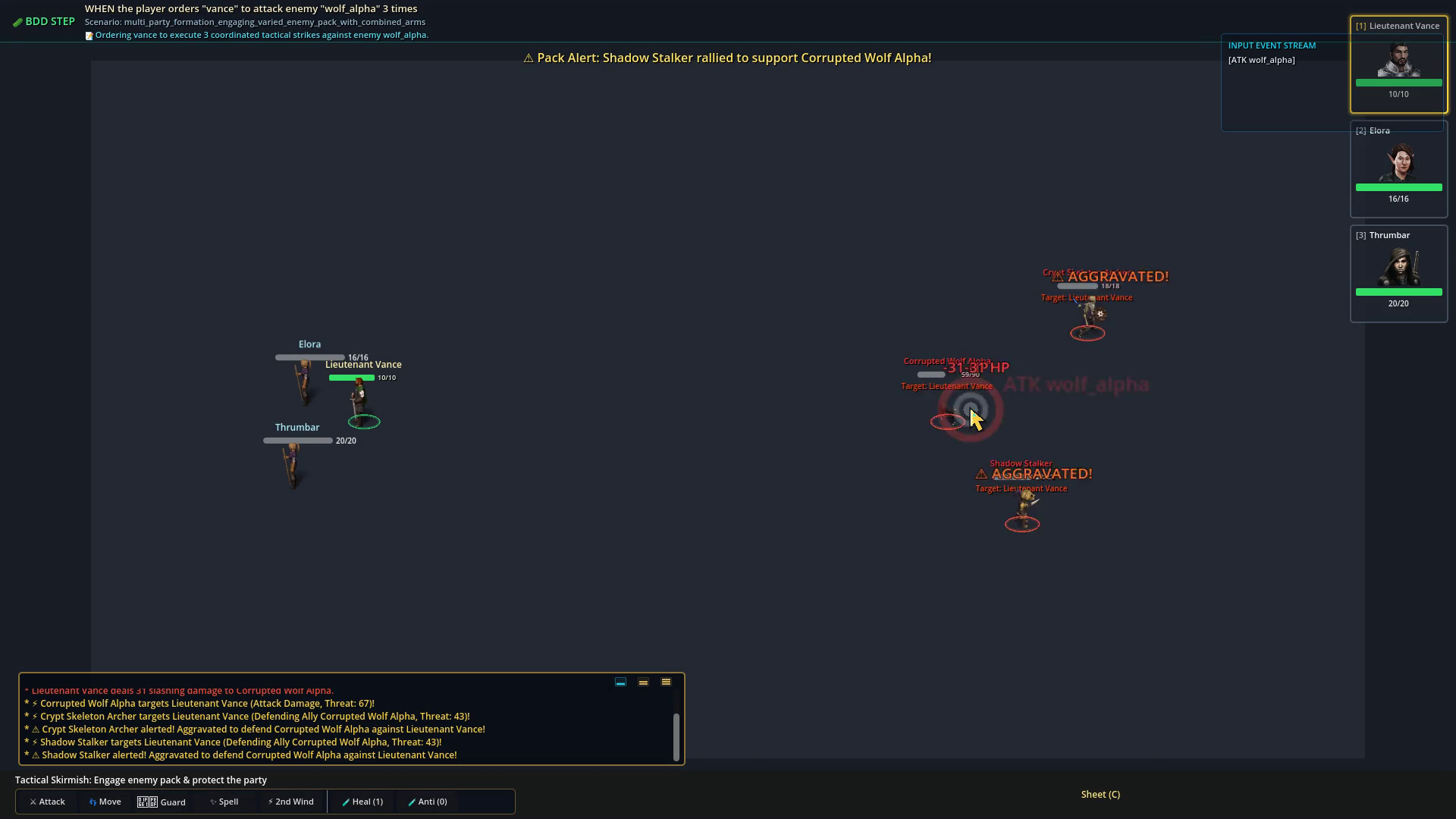

Figure 3: Tactical combat battlefield showing active threat aggro indicators, round progress timers, and spell targeting.

3. Module 2: Godot 4.3 Engine Runtime & 2.5D Isometric World

Why Godot 4.3 GL Compatibility Profile?

The engine uses Godot's GL Compatibility (OpenGL 3.3 / ES 3.0 / WebGL 2.0) renderer rather than Vulkan Forward+: - Zero Shader Stutter: OpenGL eliminates the infamous pipeline compilation freeze present in modern Vulkan pipelines. - Headless Virtual Framebuffer Stability: Runs flawlessly inside Docker containers and headless Xvfb displays (:99) without requiring expensive hardware GPUs. - Cross-Platform Parity: Identical rendering across Linux, macOS, Windows, and lightweight dev machines.

2560×1440 Pre-Rendered Plates & 1920×1080 Viewport Clamping

Maps are constructed using ultra-detailed 2560×1440 pre-rendered background plates (village_open_world_2560.png, Homestead.tscn, WhisperingForest.tscn). The player camera viewport runs at 1920×1080 native resolution, smoothly interpolating and clamping to map boundaries:

# Camera2D Boundary Clamping in Godot 4
func _process(delta: float) -> void:
    if target_hero:
        var target_pos = target_hero.global_position
        global_position = global_position.lerp(target_pos, delta * 5.0)
        global_position.x = clamp(global_position.x, 960, 2560 - 960)
        global_position.y = clamp(global_position.y, 540, 1440 - 540)

Physical Collision Geometry (Layer 1)

Every building in Oakhaven is a true physical obstacle with a StaticBody2D collider on Layer 1, preventing characters from walking through solid walls:

Building Name	Node Name	Footprint Dimensions	Map Coordinates	Door Transition ID
The Rusty Dragon Inn	`HouseInn`	$360 \times 180\text{ px}$	$(410, 640)$	`door-id-inn`
Town Hall & Guildhouse	`HouseTownHall`	$320 \times 260\text{ px}$	$(1090, 330)$	`door-id-townhall`
Brand's Forge & Armory	`HouseBlacksmith`	$220 \times 140\text{ px}$	$(1520, 460)$	`door-id-blacksmith`
Maybelle's Remedies	`HouseApothecary`	$280 \times 140\text{ px}$	$(1810, 600)$	`door-id-apothecary`
Farmer Giles' Cottage	`HouseCottage`	$240 \times 190\text{ px}$	$(140, 1120)$	`door-id-farmhouse`
Elder Martha's Cottage	`HouseElderCottage`	$280 \times 180\text{ px}$	$(670, 1340)$	`door-id-elder`
Royal Guard Barracks	`HouseBarracks`	$340 \times 220\text{ px}$	$(1620, 1250)$	`door-id-barracks`
Ranger Kaelen's Lodge	`HouseRangerLodge`	$320 \times 200\text{ px}$	$(1990, 990)$	`door-id-ranger`
Sister Althea's Shrine	`HouseShrine`	$240 \times 200\text{ px}$	$(2310, 340)$	`door-id-shrine`
Miller Hob's Windmill	`HouseMill`	$220 \times 220\text{ px}$	$(2330, 130)$	`door-id-mill`
Northern Garrison Gate	`GarrisonGate`	$400 \times 120\text{ px}$	$(1280, 220)$	`door-id-1`

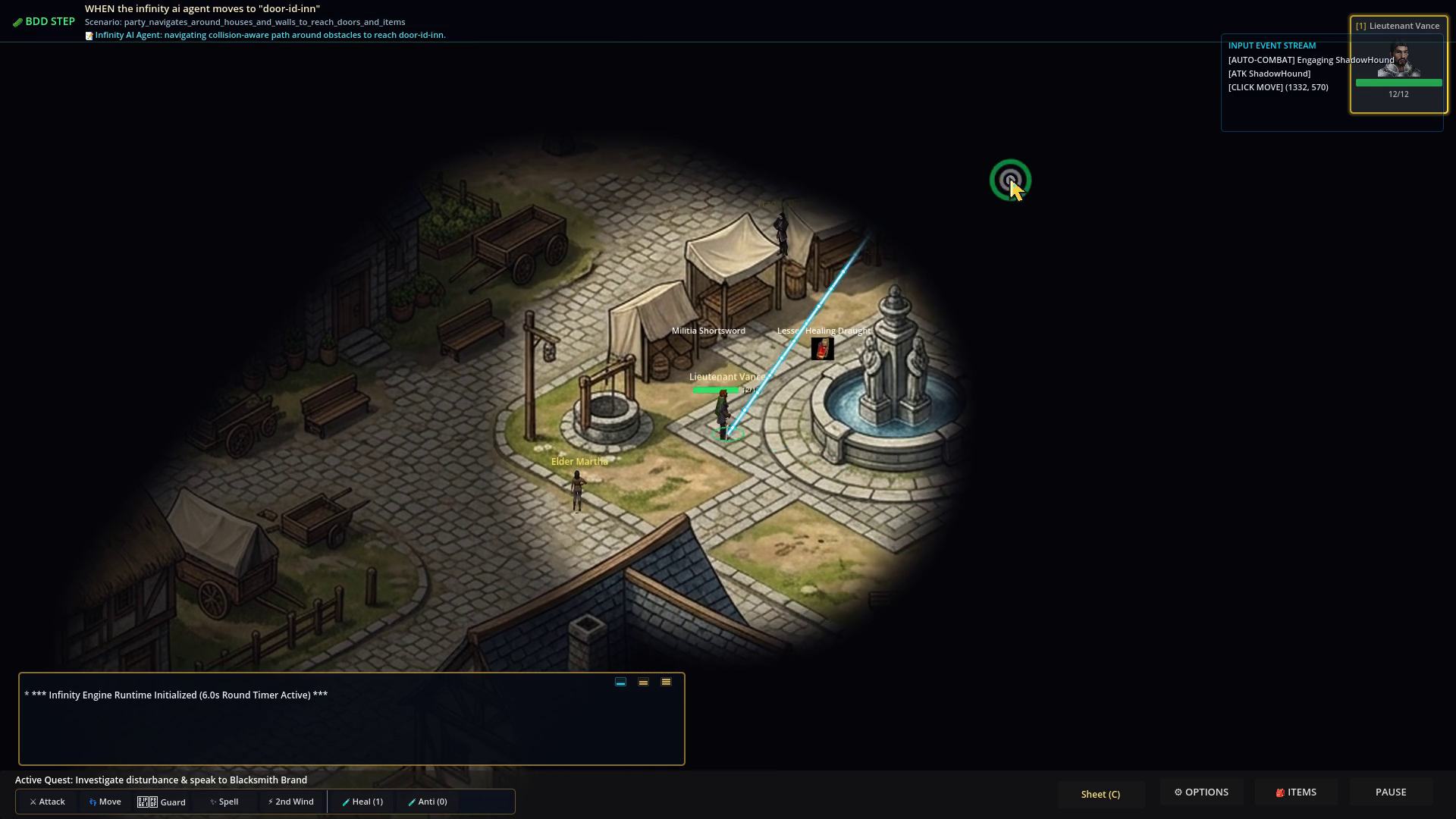

Figure 4: Physical house footprints blocking movement; party routes through safe street corridors.

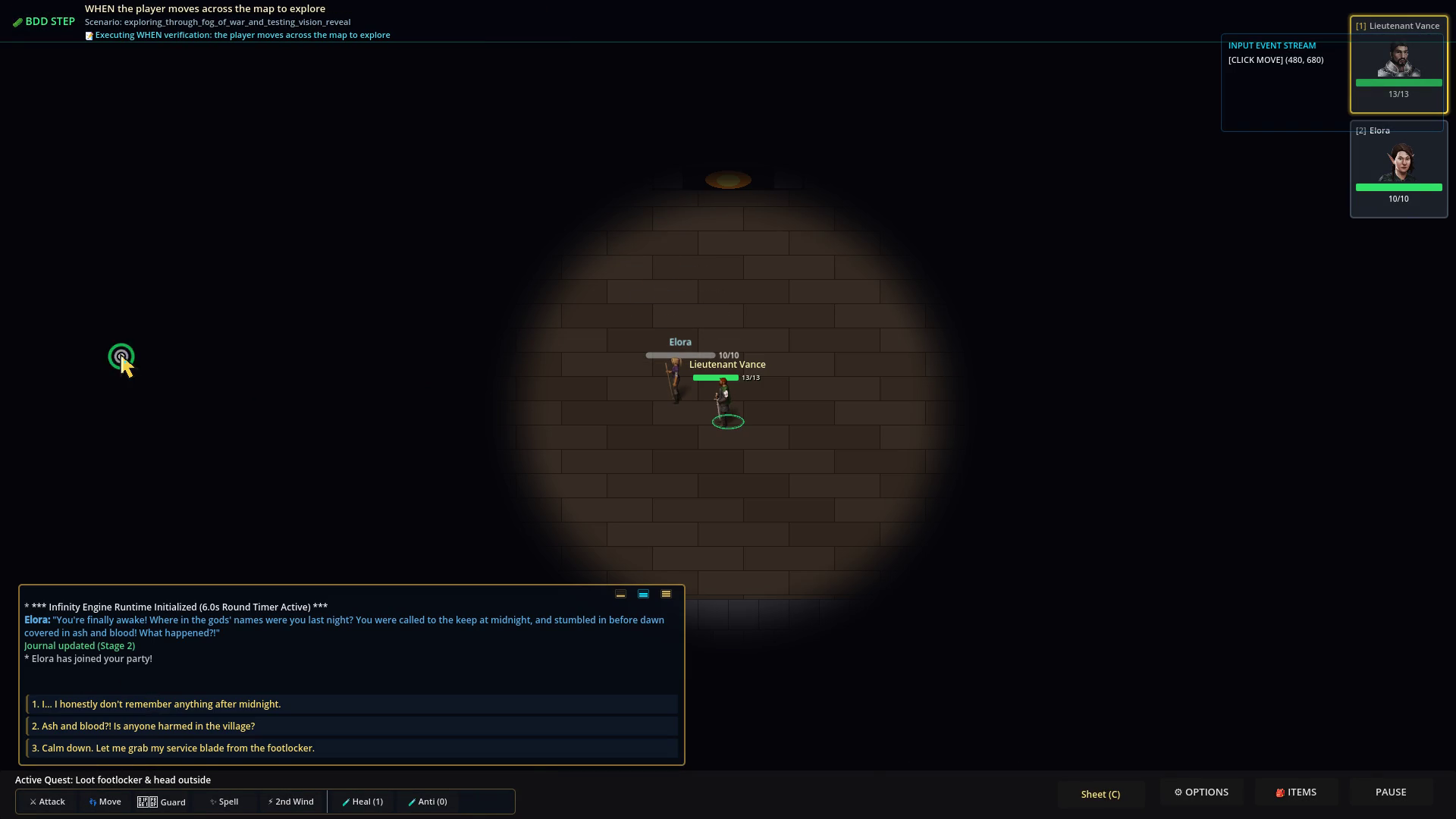

Figure 5: Custom dynamic Fog of War shader revealing shrouded terrain as heroes advance.

4. Module 3: Open-Source Asset Harvesting & Infinity Engine HUD Replica

100% Genuine Open-Source Creative Commons Pipeline

No copyrighted Bioware or Wizards of the Coast assets are used. RobOS sources all visual assets from: 1. Flare RPG (flareteam/flare-game): CC-BY-SA 3.0 animated 8-directional isometric characters (walk, attack, take damage, death animations) and modular paperdoll items (armor, robes, swords, shields, bows). 2. Game-Icons.net: Over 4,000 CC-BY 3.0 vector SVG icons for abilities, spellbooks, inventory, and status buffs. 3. OpenGameArt.org: CC0/CC-BY sound effects for sword impacts, spell chanting, and UI clicks.

Three-Mode Expandable Activity Log

The game replicates the iconic Infinity Engine console at the bottom of the screen with three reactive expansion tiers:

graph LR ModeSmall["Small Mode (124px)
Compact Combat & Telemetry Log"] -->|Click Expand / Talk NPC| ModeMed["Medium Mode (240px)
In-Log Numbered Dialogue Trees"] ModeMed -->|Click History| ModeLarge["Large Mode (420px)
Full d20 Roll Breakdown & Quest Journal"] ModeLarge -->|Click Minimize| ModeSmall

Dialogue choices are presented directly inside the activity log, allowing keyboard selection (1–9) or direct mouse clicks without intrusive full-screen popups:

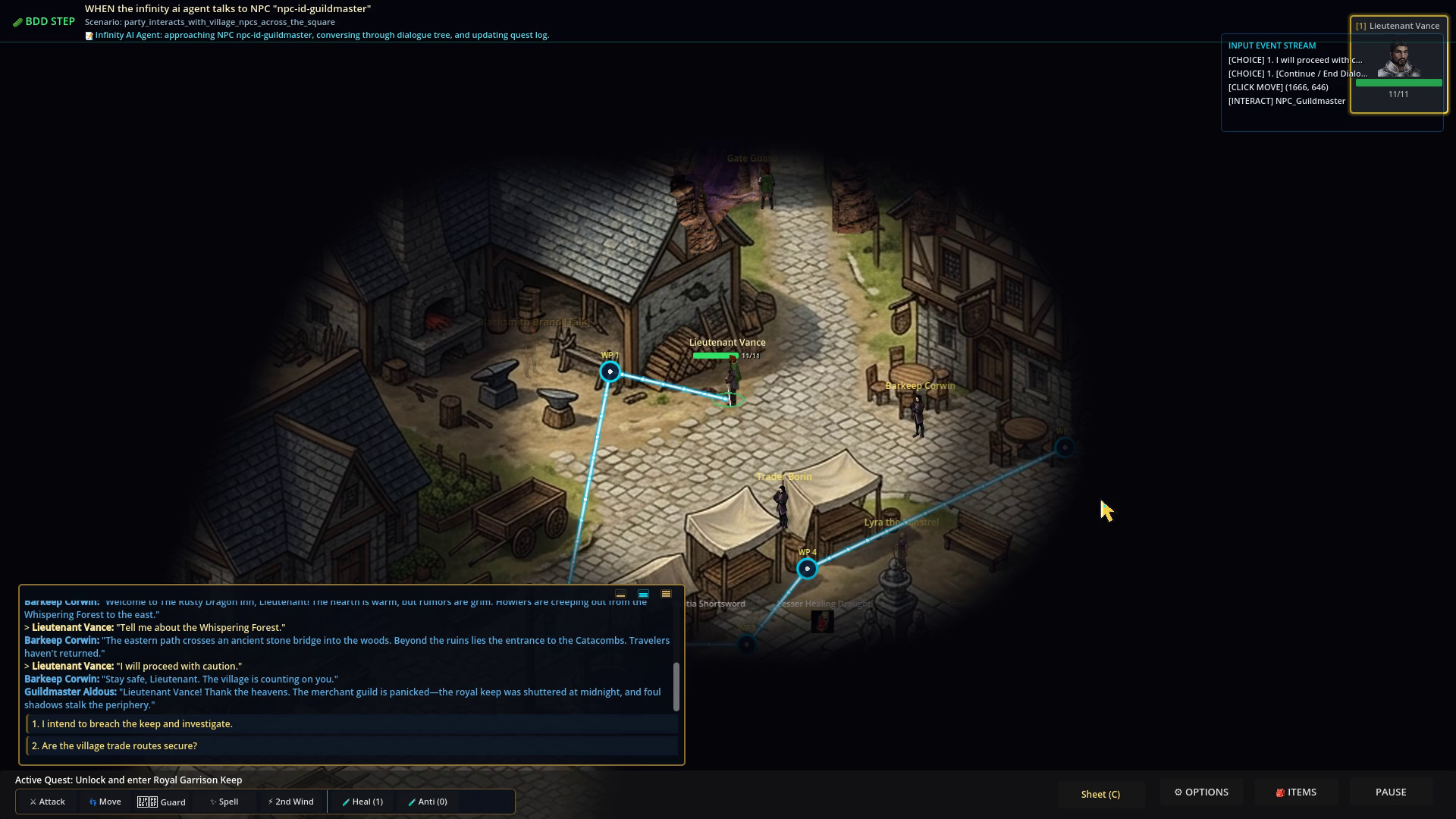

Figure 6: Multi-branch dialogue with Blacksmith Brand inside the 240px Activity Log showing numbered options and NPC facing.

5. Module 4: Autonomous Infinity AI Agent & Headless BDD Verification

The Infinity AI Agent (`qa_player/infinity_ai_agent.py`)

Rather than relying on human clickers or brittle hardcoded input recordings, RobOS features an autonomous decision-making agent capable of playing through the entire 5-Act campaign from character creation to defeating Captain Malakor.

flowchart TD Scan["Perception Scan: Query Proximity Entities via GET /api/v1/state"] --> CheckThreat{"Enemy within 140px Proximity Trigger?"} CheckThreat -- Yes --> AlertPack["Trigger 200px Pack Alerting Radius"] AlertPack --> PauseGame["Spacebar: Enter Tactical RTwP Pause"] PauseGame --> RoleTactics{"Assign Role-Based Orders"} RoleTactics -- Fighter --> Intercept["Move to Intercept Nearest Hostile & Taunt (Peel)"] RoleTactics -- Rogue --> Standoff["Maintain 180px Standoff Bow Range"] RoleTactics -- Wizard --> CastSpell["Cast Magic Missile / Fireball at Highest Threat Target"] RoleTactics -- Cleric --> CheckHP{"Any Companion HP < 40%?"} CheckHP -- Yes --> Heal["Cast Cure Wounds on Critical Ally"] CheckHP -- No --> Smite["Cast Sacred Flame on Frontline Enemy"] Intercept --> Unpause["Spacebar: Resume Simulation"] Standoff --> Unpause CastSpell --> Unpause Heal --> Unpause Smite --> Unpause CheckThreat -- No --> Explore{"Active Quest Waypoint Remaining?"} Explore -- Yes --> Route["Execute Pathfinder.gd Obstacle-Avoidance Corridors"] Explore -- No --> TalkNPC["Approach NPC and Trigger Numbered In-Log Dialogue Choice"]

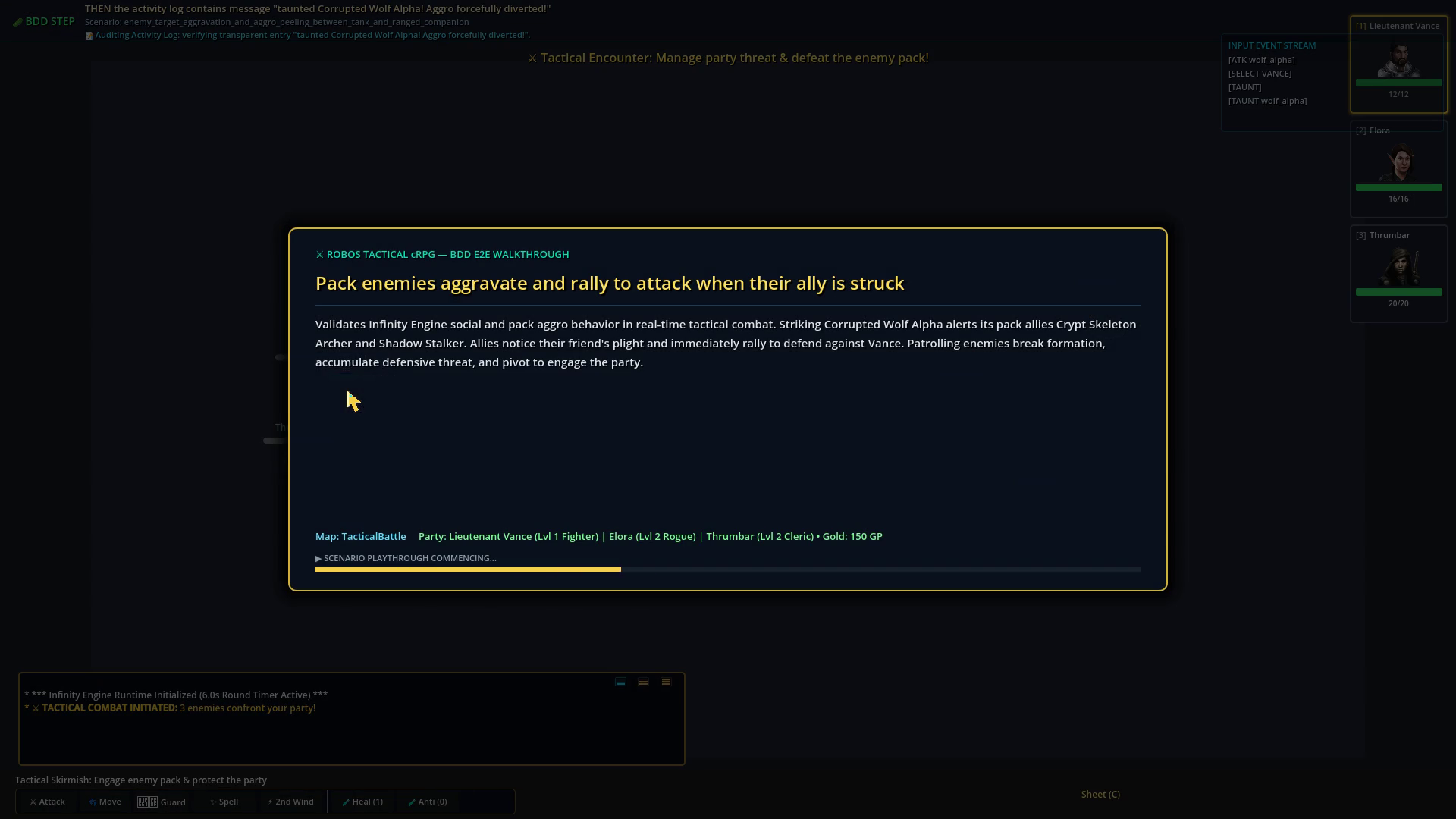

Figure 7: BDD scenario verifying enemy pack aggro alerting and frontline fighter peeling.

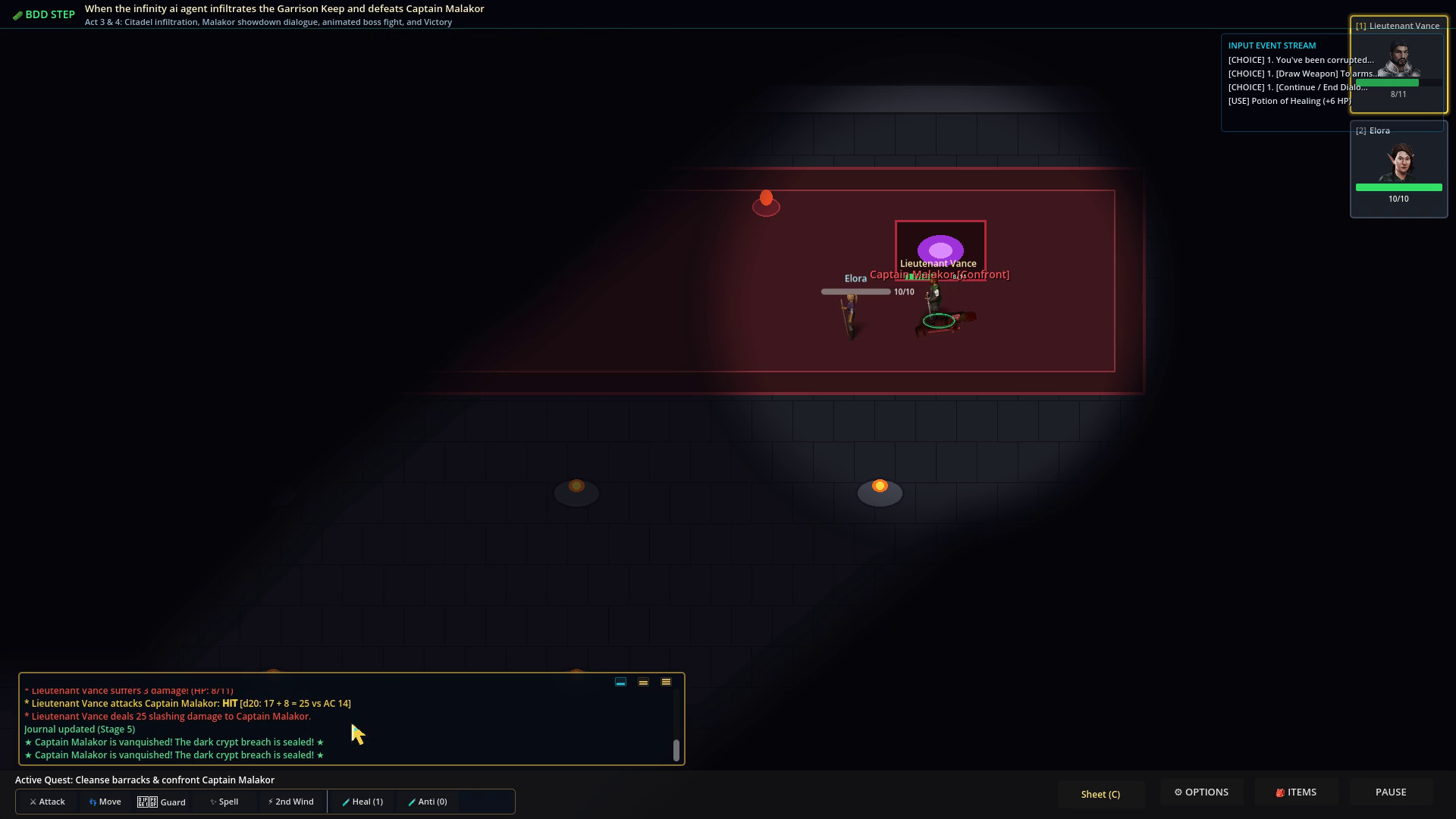

Figure 8: Autonomous campaign completion reached with 100% test pass rate across 482 steps.

6. Module 5: Knowledge Graph-First Game Architecture (`.robos/kgraphs/crpg`)

The 4-Phase Generation Pipeline

graph TD Phase1["Phase 1: Ontological Modeling
.robos/kgraphs/crpg/package.jsonld & W3C SHACL Shapes"] --> Phase2["Phase 2: Schema & Data Store Layer
schemas/v1/*.json & games/crpg-realm/data/v1/*.json"] Phase2 --> Phase3["Phase 3: Open-Source Asset Harvesting
Flare RPG CC-BY-SA Sprites & Game-Icons.net SVGs"] Phase3 --> Phase4["Phase 4: Scene & Systems Composition
Godot 4.3 GL Compatibility & DataStoreV1.gd Singletons"]

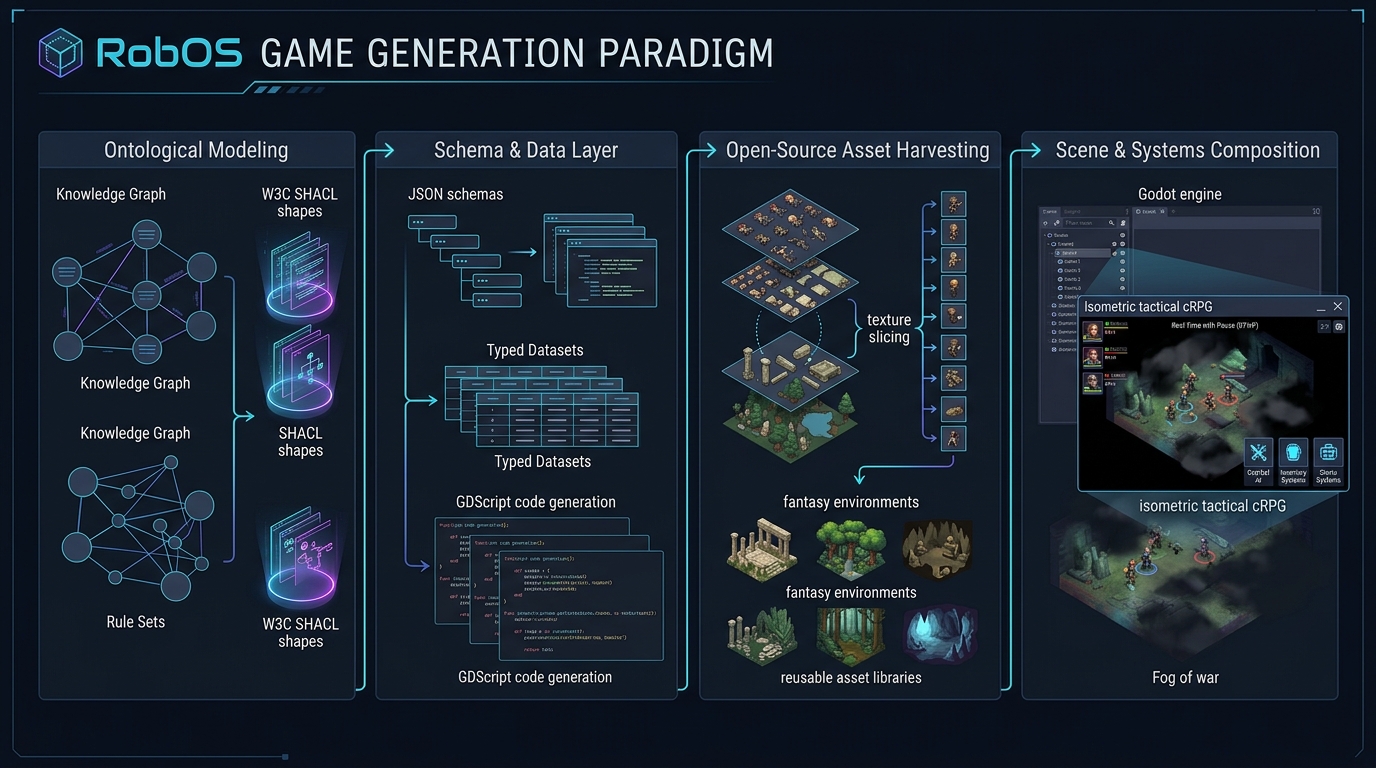

Figure 9: The 4-Phase RobOS Knowledge Graph-First Game Generation Paradigm.

Strict Zero-Hardcoding Rule

In RobOS, no game stats, monster health values, spell formulas, or dialogue trees may be hardcoded into engine scripts. Everything is defined in .robos/kgraphs/crpg/package.jsonld and JSON Schemas under schemas/v1/, which compile directly to typed GDScript singletons under src/generated/v1/DataStoreV1.gd:

# Auto-generated statically-typed DataStoreV1.gd
class_name DataStoreV1
extends Node

static func get_class_data(class_id: String) -> Dictionary:
    match class_id:
        "fighter":
            return {
                "hit_die": 10,
                "primary_ability": "STR",
                "saving_throws": ["STR", "CON"],
                "base_hp": 12
            }
        "wizard":
            return {
                "hit_die": 6,
                "primary_ability": "INT",
                "saving_throws": ["INT", "WIS"],
                "base_hp": 7
            }
    return {}

7. Interactive Hands-On Labs & Certification

You can launch and complete this full course interactively inside the RobOS eLearning Hub or online via GitHub Pages:

- 🌐 Interactive Web Edition: www.rowbose.com/projects/crpg-realm/elearning/
- 🖥️ Desktop Player:

# Launch central eLearning player loaded to the cRPG Masterclass
electron packages/robos-elearning --course=robos-crpg

# Or launch the dedicated standalone desktop app
electron packages/robos-crpg-elearning

Upon completing all 5 module labs and passing each module's knowledge check with $\ge 80\%$ , the system automatically issues a cryptographically verified RobOS Knowledge Graph Certificate of Completion conforming to schema:EducationalOccupationalCredential.
