RobOS Pass Manager — KeePassXC (.kdbx) Single-Archive Vault & YubiKey FIDO2 Unlock

RobOS Pass Manager (packages/pass-manager, debug port :19113) replaces traditional directory-based GPG pass stores with a single-archive KeePassXC .kdbx 4.1 password studio backed by packages/robos-lib/kdbx-vault.js and unlocked by a physical YubiKey / FIDO2 Security Key via the CTAP2.1 hmac-secret extension.

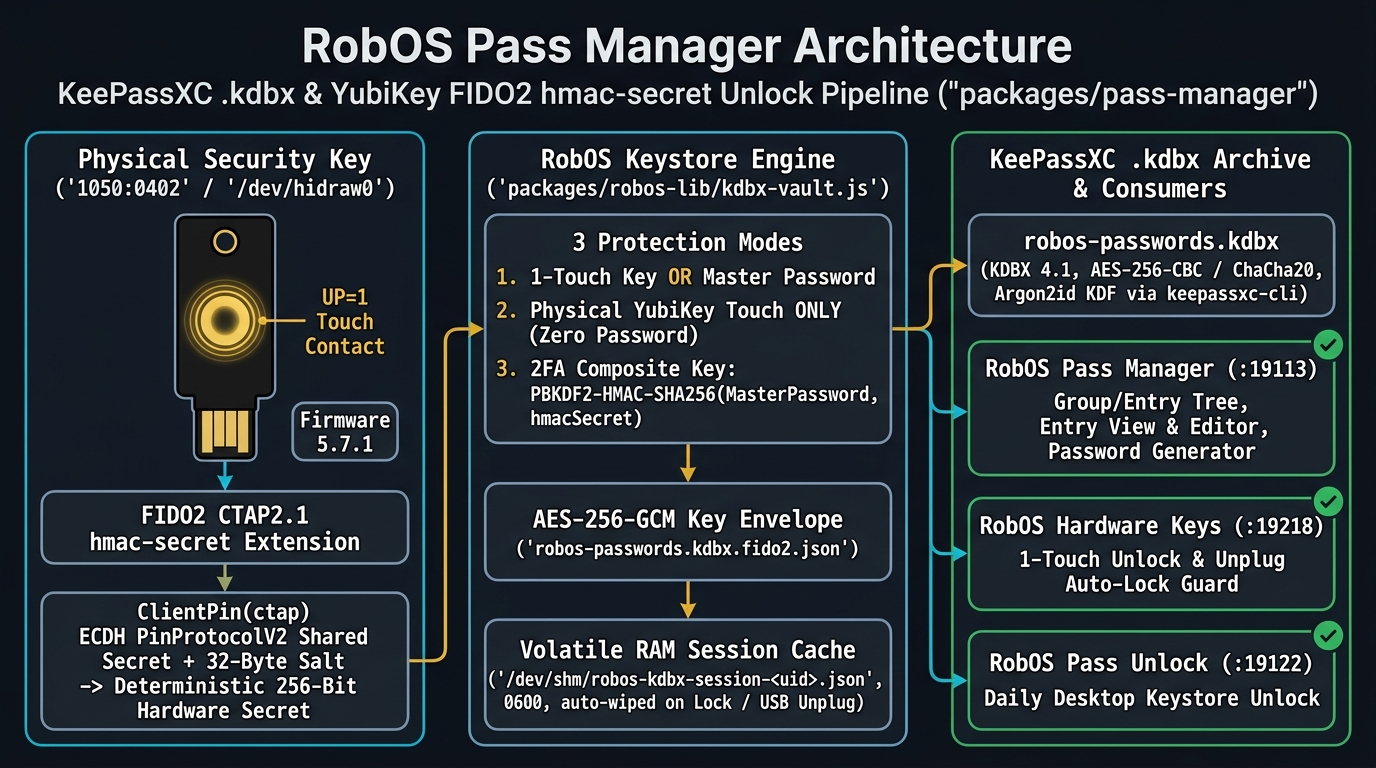

Architecture

flowchart LR
  subgraph YK["Physical Security Key (/dev/hidraw0 • 1050:0402)"]
    TOUCH["Capacitive Gold Touch Disc<br/>User Presence (UP=1)"]
    ECDH["CTAP2.1 ClientPin ECDH<br/>PinProtocolV2 Shared Secret"]
    HMAC["FIDO2 hmac-secret Extension<br/>32-Byte Salt -> 256-Bit Hardware Secret"]
    TOUCH --> ECDH --> HMAC
  end

  subgraph ENGINE["RobOS Keystore Engine (packages/robos-lib/kdbx-vault.js)"]
    WRAP["AES-256-GCM Key Envelope<br/>robos-passwords.kdbx.fido2.json<br/>(1-Touch / Touch-Only / 2FA PBKDF2)"]
    SHM["Volatile RAM Session Cache<br/>/dev/shm/robos-kdbx-session-UID.json (0600)<br/>Wiped on Lock or USB Unplug"]
    CLI["keepassxc-cli Bridge<br/>db-create / ls / show / add / edit / rm / db-info"]
    HMAC --> WRAP --> SHM --> CLI
  end

  subgraph CONSUMERS["Single-File Archive & RobOS Apps"]
    KDBX[("robos-passwords.kdbx<br/>KDBX 4.1 • AES-256 • Argon2id")]
    PM["RobOS Pass Manager (:19113)<br/>Entry Tree, Editor & Generator"]
    HK["RobOS Hardware Keys (:19218)<br/>Keystore Guard & Unplug Auto-Lock"]
    PU["RobOS Pass Unlock (:19122)<br/>Daily Desktop Unlock Prompt"]
    CLI --> KDBX
    SHM --> PM
    SHM --> HK
    SHM --> PU
  end

Key Capabilities

1. Single-Archive KDBX 4.1 Container (robos-passwords.kdbx): Encrypts the entire hierarchy—group names, titles, usernames, passwords, URLs, UUIDs, and notes—inside one portable .kdbx file (AES-256, Argon2id).
2. Physical YubiKey Unlock via FIDO2 hmac-secret: Works with FIDO-only keys (such as the Yubico Security Key C NFC, Firmware 5.7.1, USB ID 1050:0402) as well as YubiKey 5 Series keys by negotiating an ECDH shared secret (PinProtocolV2) and evaluating a deterministic 32-byte hardware HMAC-SHA256 secret on physical touch (UP=1).
3. Three Protection Modes:

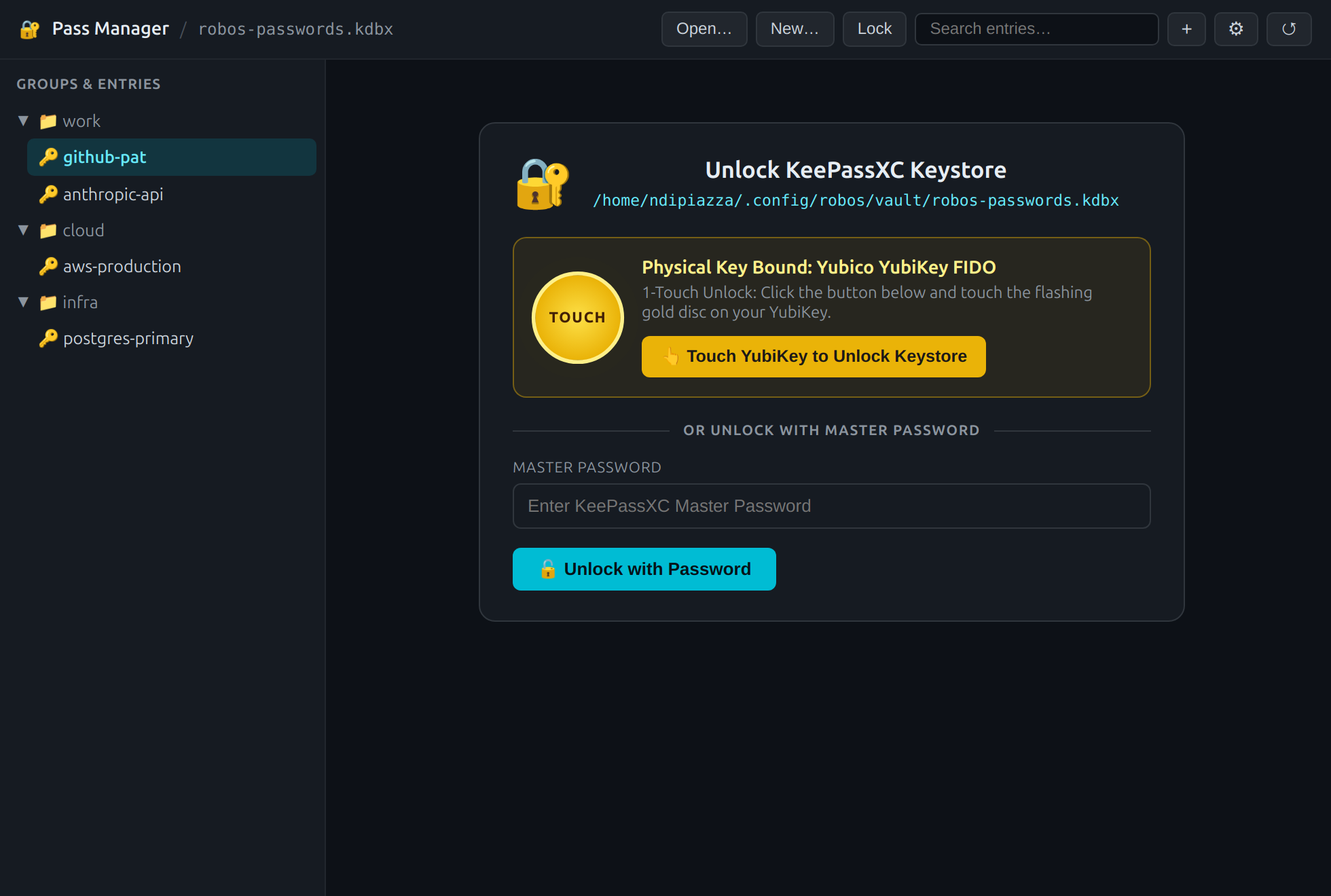

   • 1-Touch Physical Key OR Master Password (unlock with a single YubiKey touch; keep Master Password as backup)
   • Physical YubiKey Touch ONLY (zero master password)
   • 2FA Composite Key (PBKDF2-HMAC-SHA256 combining Master Password + Physical YubiKey Touch)
4. Volatile /dev/shm Session & USB Unplug Auto-Lock: Active unlocked session keys live only in /dev/shm/robos-kdbx-session-<uid>.json (0600) and are wiped immediately when you click Lock or unplug your YubiKey from USB.
