REST API Client & Runner

Request editor and collection runner wired to a sample Acme Petshop collection on a local Kubernetes cluster. It is a demo built around that one scenario, not a general REST client yet.

packages/rest-client

REST API Client has the layout of a Bruno-style client: a collections tree, a request editor, a response pane and a collection runner. Today it works only for a demo scenario, the Acme Petshop services running on a local kind cluster. You cannot yet add your own collections or point it at an arbitrary base URL.

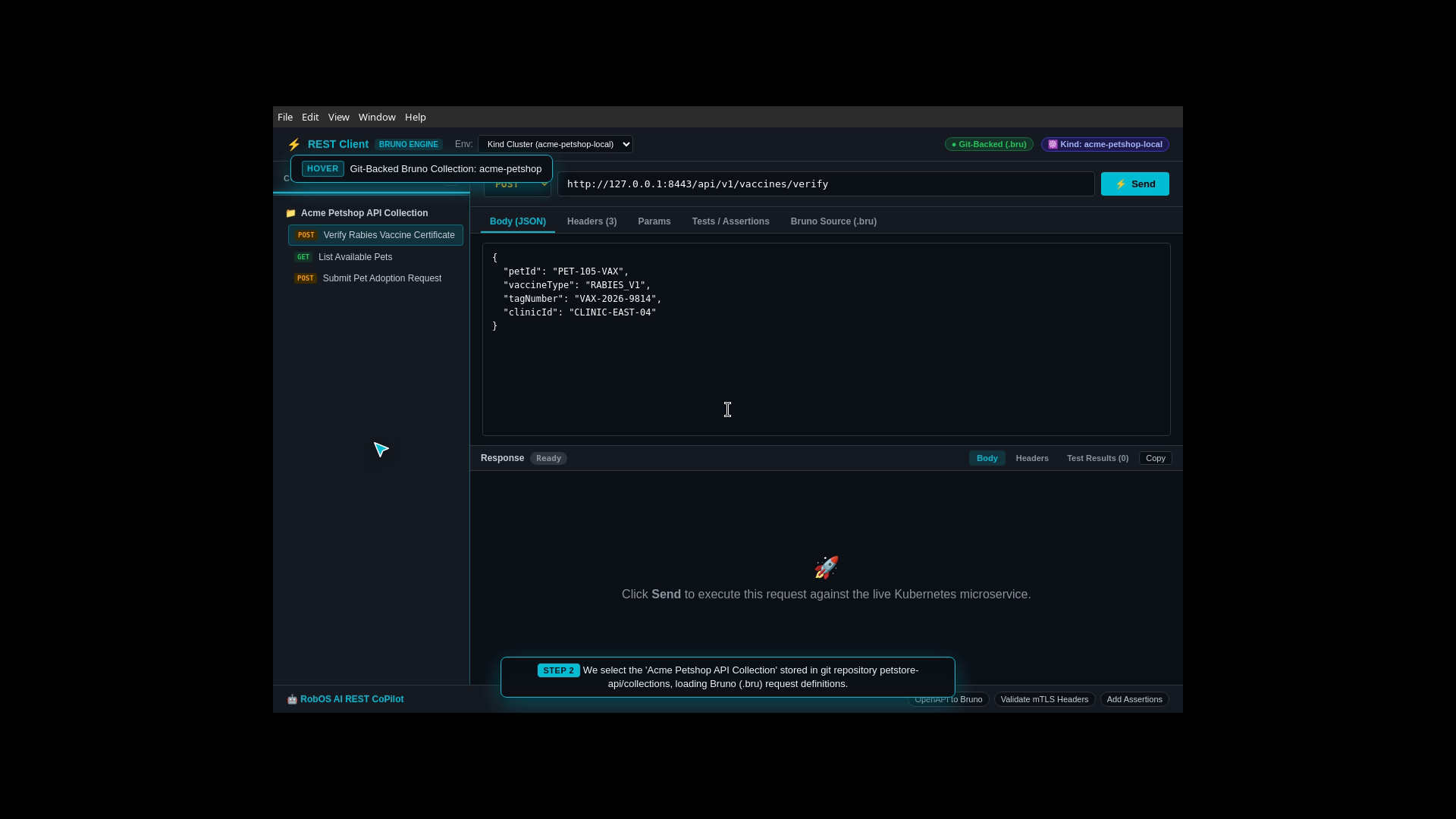

REST Client showing the Acme Petshop collection and a POST request to the vaccine verification endpoint

The request editor with the sample collection on the left. The labelled overlays in this frame come from a recorded demo, not from the app.

What works

  • Request Editor. Select a request from the Acme Petshop API Collection (create pet, verify rabies vaccine certificate, list available pets, submit adoption request, health check). Edit the method, URL, Body (JSON), Headers, Params and the test text, and click Send. The response pane shows the status, time, size, body, headers and test results.
  • Collection Runner. Switch with the Collection Runner button at the top, set Iterations and Delay, and click Run Collection (5 Requests). It runs five fixed requests against petstore-api, vaccine-gateway and petstore-infra and fills a results matrix with status, latency and assertions.

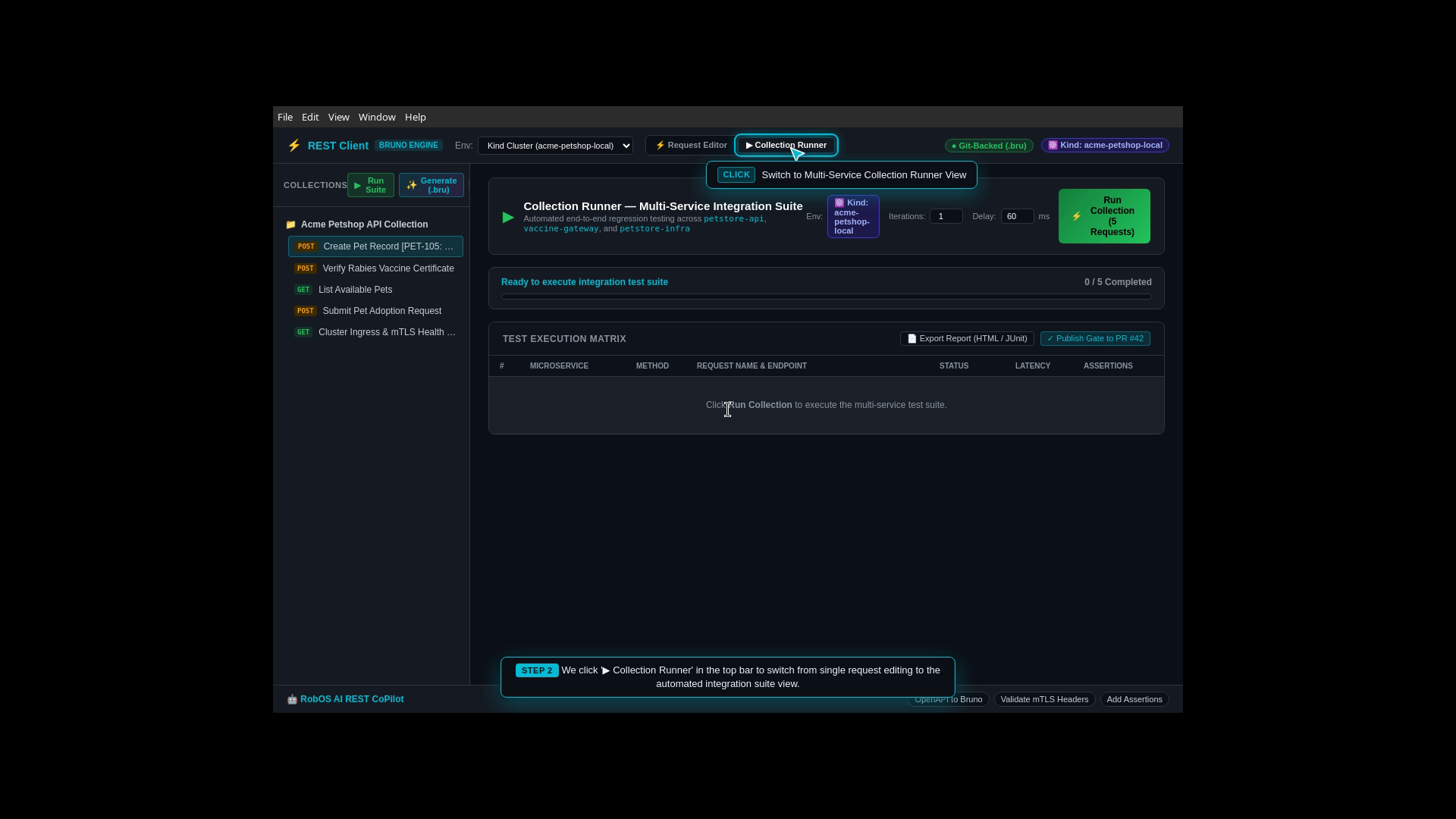

Collection Runner view with the Run Collection button and an empty results matrix

The runner before a run: the five-request suite, the iteration and delay fields, and the empty test execution matrix.

Limits to know about

  • Fixed target. Every request has {{baseUrl}} replaced with http://127.0.0.1:8443, whichever environment you pick in the Env drop-down (the three environments are built in). Before sending, the app starts kubectl port-forward svc/vaccine-gateway 8443:8443 -n acme-petshop-local if nothing is listening on 8443, using kubectl from ~/.local/bin. Without that cluster, requests fail with a network error, except one analytics request that returns a built-in sample answer.
  • Collections are built in. They are defined in main.js. The .bru files under packages/rest-client/collections/acme-petshop/ are not loaded by the app.
  • Tests are not Bruno scripts. The “Tests / Assertions” text is shown but not executed. The app marks a request as passed if the HTTP status is below 400, with a few extra checks on fields such as status and verified.
  • Generate (.bru) and the AI buttons return one fixed sample request regardless of your input. Save & Commit to Git writes a fixed template to collections/acme-petshop/01-verify-rabies-vaccine.bru, relative to the working directory, and does not commit. Export Report and Publish Gate to PR #42 only change the button label.

Run it

Launch from the app launcher, or run npm start in packages/rest-client.
